Waterkaarten App Deal: A052T 5W SODTMA AIS Transponder with WiFi

Articlenumber: A052T-1 Categories: , Tags: , Brands: ,

Oorspronkelijke prijs was: € 759,00.Huidige prijs is: € 709,00.

Availability: In Stock
  • AIS transmit and receive
  • 5 w SODTMA
  • Very budget-friendly
  • Easy to link with the Waterkaarten app
  • Built-in NMEA0183/2000 converter
  • Simple installation
  • Not an app user yet? Check here

Articlenumber: A052T-1 Categories: , Tags: , Brands: ,

Beschrijving

Waterkaarten Deal, for Waterkaarten App subscribers only *

Would you like to transmit and receive AIS and see it visible on your tablet or smartphone? Then this is the most budget-friendly 5-watt SODTMA solution.

Increase your safety and visibility on the water with our 5 Watt Class B AIS transponder, ideal for pleasure craft, yachts and fishing boats.

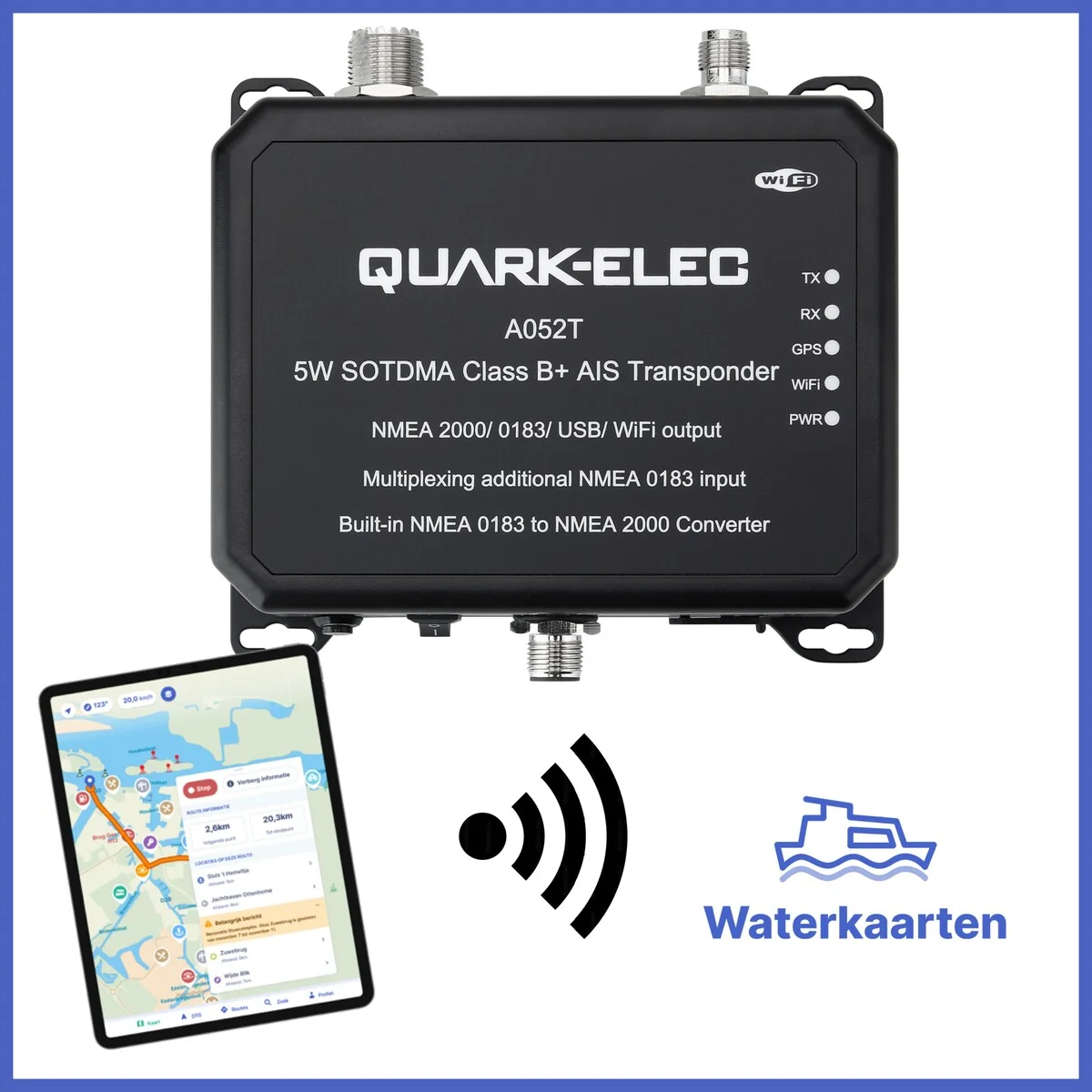

Compact and reliable, the A052T fully meets the requirements for Class B+ AIS transponders. It also offers additional safety and tracking and monitoring capabilities.

The A052T not only broadcasts your AIS data to surrounding ships and shore stations, but also receives and decodes incoming AIS messages. Thanks to integrated GPS receiver, it combines AIS data with accurate location information, allowing you to track both your own position and that of other nearby vessels in real-time.

  • Transmits your vessel's position, speed, course and other important data within VHF range.
  • Receives and processes all AIS message types as well as GPS data.
  • Tracks other AIS ships in the vicinity, including their speed, course and course changes.
  • Real-time display on PC, chartplotter or mobile device.
  • Affordable solution for collision prevention and maritime surveillance.
  • Fully compliant with the European RF & TTE directive.
  • LED status indicators instantly show whether AIS messages are sent and received correctly.
  • Supports easy configuration via web interface via WiFi (no computer required)

What do you receive?

  • 1 x A052T AIS Transponder (class B+ SODTMA)
  • 1x WiFi antenna
  • 1 x 12 pin POWER/NMEA cable
  • 1 x USB C cable
  • AIS transmission rate: 5 Watts, SOTDMA protocol. Programmable between 1, 2 and 5 (by default) Watts.
  • AIS receiving range: Up to 40nm.
  • VHF connector port: Standard SO239/UHF Female connector. Connects to an external VHF/AIS antenna (requires standard PL-259/UHF Male Plug).
  • GPS connector: TNC female bulkhead connector for connection to an external GPS antenna. The A052T includes a built in GPS module and only requires a GPS antenna to be connected
  • POWER connector: 12 pin POWER/NMEA connector
  • POWER supply range: 12V - 35V
  • NMEA 0183 output ports: For connection to chart plotters and other NMEA0183 compatible equipment as desired.
  • USB: Type C USB for easy connecting to your laptop or PC for configuration and data viewing. (Please note, full configuration is only possible via a Windows PC where as the Vessel information can be configured via WiFi).
  • WiFi Output: The NMEA 0183 sentences are also transmitted through WiFi. It support Ad-hoc and Station mode WiFi (with and without a router). No configuration required for Ad-hoc WiFi.
  • NMEA 2000 Output: Connects to NMEA 2000 networks for AIS and position data sharing.
  • LED lights confirm incoming and outgoing AIS messages, GPS, WiFi and Power.

Additional information

Shipping time

2 days

Brand

Quark-Elec
