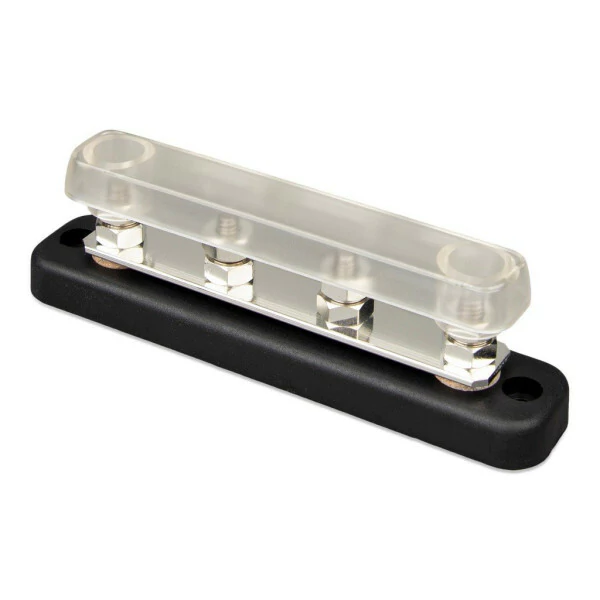

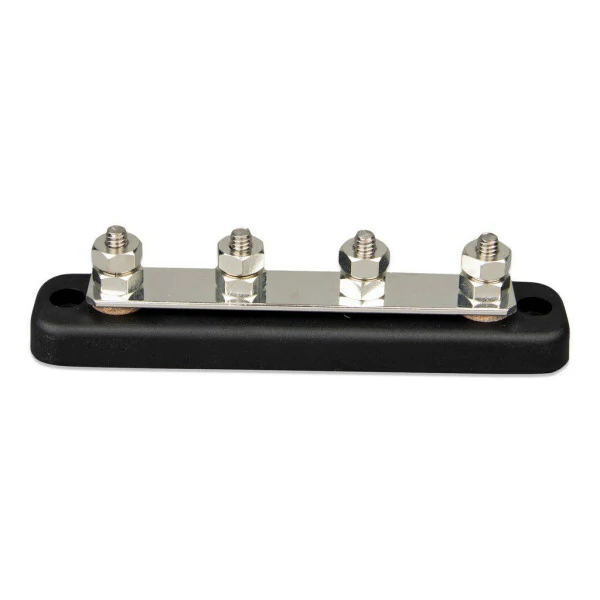

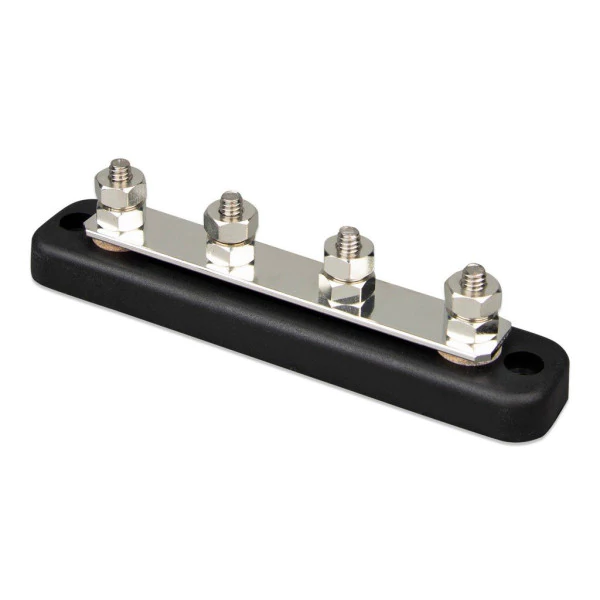

Availability: In StockThis 150A DC distribution busbar with four M6 connectors and protective cap is used for safe and convenient connection of batteries and DC equipment. The bus bar is suitable for distributing high currents up to 150 amps.
Different bus bars are available in terms of current ratings and number of connections. Each rail is fitted with a removable protective cover.
> Current (max.): 150 A
> Voltage (max.): 70 VDC
> Connection diameter: M6 (6.35 mm)
> Terminal height: 17 mm
> Terminal material: Stainless steel (SS)
> Material of hex nut: Tinned copper
> Recommended tightening torque: 7 N - m
> Copper busbar material: tinned copper (1.4 x 18 mm)
> Base material: ABS, black, UL 94 V-0
> Lid material: clear polycarbonate, UL 94 HB
> Weight (4 terminals): 0.2 kg
> Dimensions (hxwxd) (with lid) 45 x 152.4 x 31.8 mm
| Shipping time | 2 days |
|---|---|
| Brand | Victron - Top Systems |
