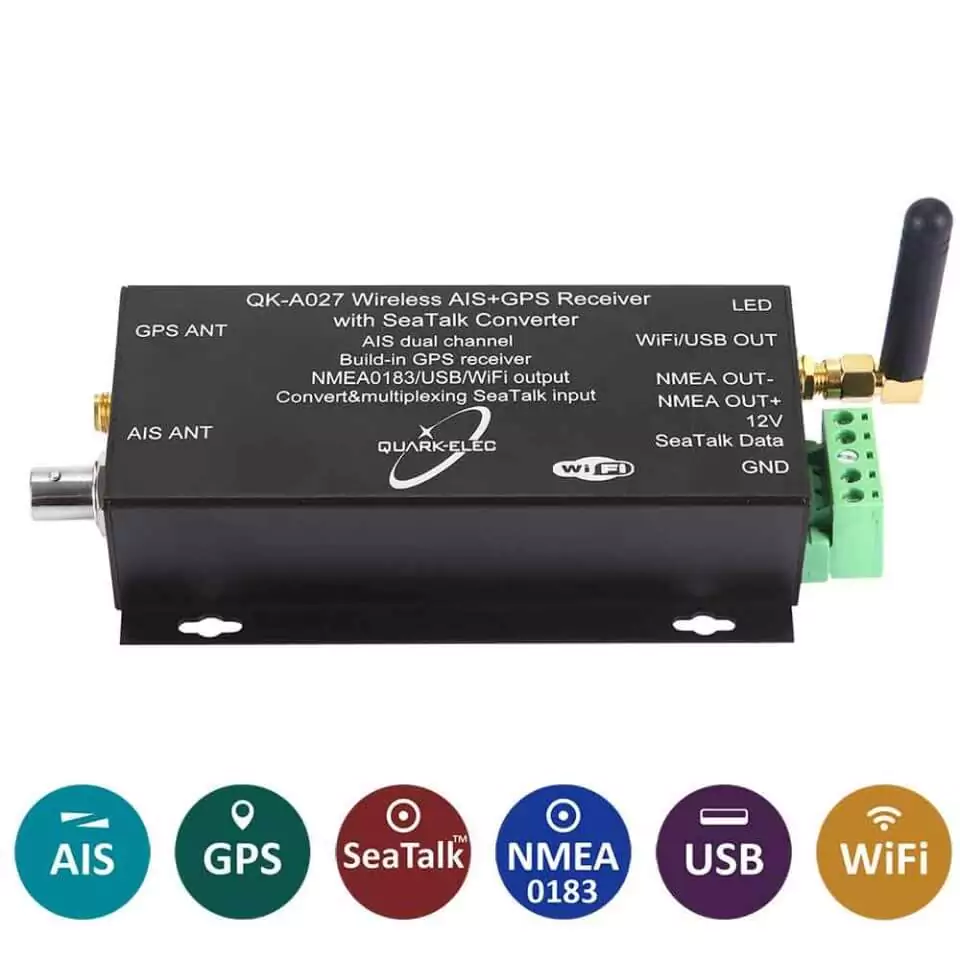

Quark-Elec A027 AIS Receiver with WiFi + GPS + NMEA + SeaTalk

Brands:
Articlenumber: A027 Categories: , , Brands:

€ 189,00

Availability: In Stock
  • This entry-level model is simple to use and an inexpensive AIS + GPS Receiver and Seatalk-NMEA multiplexer in one.
  • Simplifies AIS + GPS and instrument data on a tablet
  • Upgrade your Raymarine ST series
  • Compatible with all apps
  • Compact
Status In stock
Articlenumber: A027 Categories: , , Brands:

Beschrijving

Do you already use a tablet with a navigation app and want to add real-time AIS and GPS to it? And also see your SeaTalk instruments? Then the A027 is a good choice.

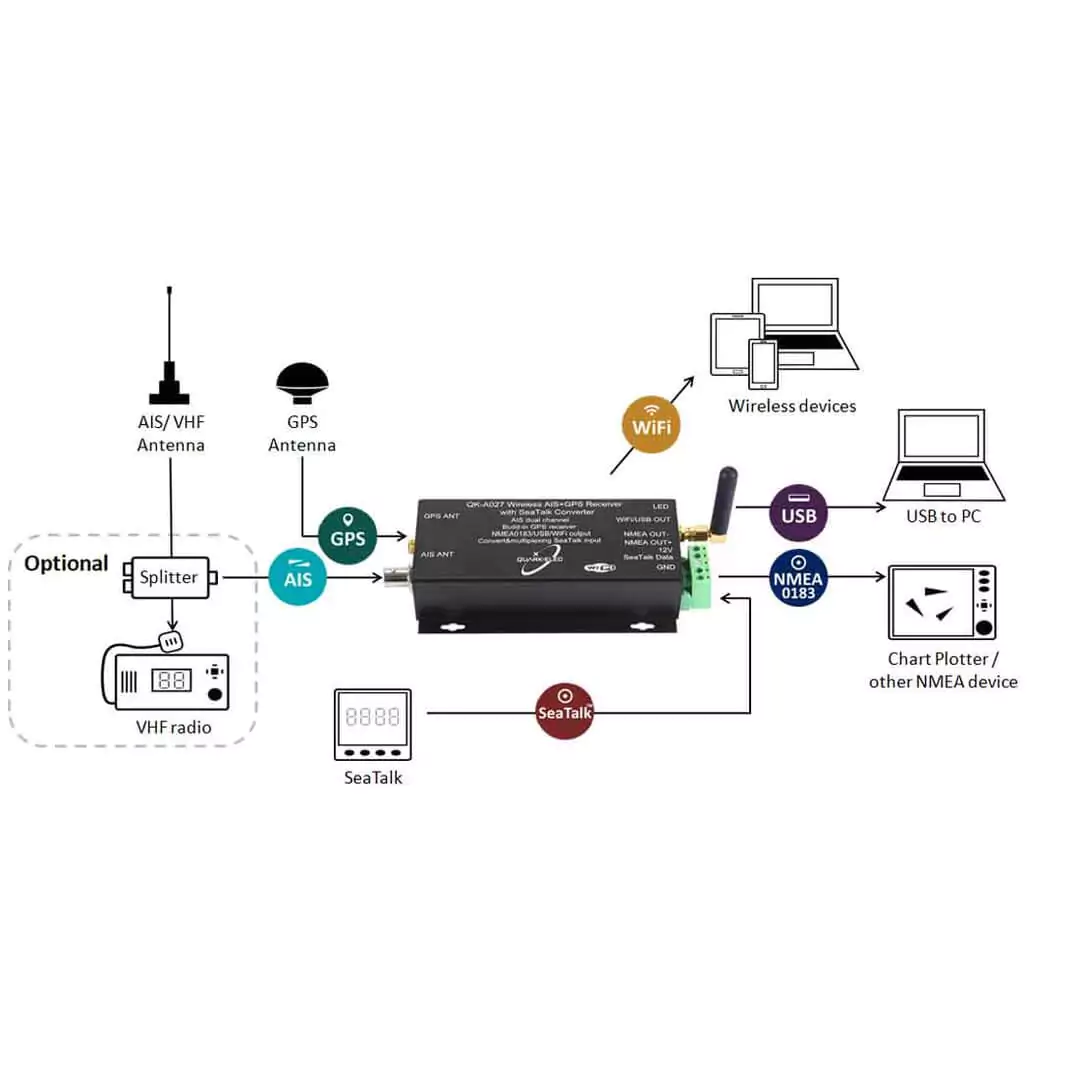

Data from the built-in AIS and GPS receiver and data from the SeaTalk instruments are combined by the multiplexer and can be transmitted to WiFi, USB and NMEA0183. Whether you use a tablet, a smartphone, chartplotter or an (on-board) computer, you can easily connect the device to your on-board navigation system. Easy to pair with the well-known apps such as Navionics, Waterkaarten app, iNavx, WinGPS, etc.

  • Combined AIS + GPS with SeaTalk
  • Compact dual-channel AIS receiver
  • Multiplexer: combines AIS + GPS + SeaTalk with NMEA 0183
  • Up to 22 nautical miles reception range
  • WiFi and USB
  • 1 x SeaTalk INPUT 1 x 0183 OUTPUT 1

By default, it is on WiFi Adhoc mode but if you want to connect via your router, you can of course use Station mode.



What do you receive?

1 x QK-A027
1 x USB cable
1 x Software



  • Two independent receivers monitoring AIS channels (161.975 MHz and 162.025 MHz) and decoding both channels simultaneously
  • Sensitivity down to -104 dBm @ 30% PER
  • Reception range up to 20 nautical miles
  • Current via Seatalk bus (<120mA @ 12.0V)
  • NMEA-0183 message output via WiFi, USB and RS422
  • Configurable baud rates: (4.8, 9.6, 38.4k output)
  • Simultaneous WiFi and USB output
  • Internal WiFi access point connects up to 4 devices simultaneously
  • Operating mode Adhoc and Station
  • SeaTalk to NMEA 0183 protocol converter
  • Built-in GPS to provide position data
  • Combines GPS and AIS messages with NMEA 0183 and outputs as a seamless data stream
  • BNC connector for 50 Ohm VHF antenna
  • SMA connector for 50 Ohm GPS antenna
  • Compatible with Windows XP, 7,8,10, Mac OS X, Linux systems, Android and iOS
  • Plug-and-play connectivity with chartplotters and PCs
  • Can be connected to older RS232 products via optional Protocol Bridge (AS03).
